Slack Workflow Builder with Visualping

Edited

Slack Workflow Builder is a powerful tool that allows you to automate tasks and streamline communication within your team. We recommend using our Slack App to send notifications to public Slack channels. However, if you are interested in sending alerts to a private channel, want a custom alert format, or need to execute other custom automation, we suggest using the Slack Workflow Builder with Visualping Webhooks.


How to create a Slack workflow with Visualping Webhooks

You can refer to Slack's official workflow tutorial for the up-to-date steps.

Step 1:

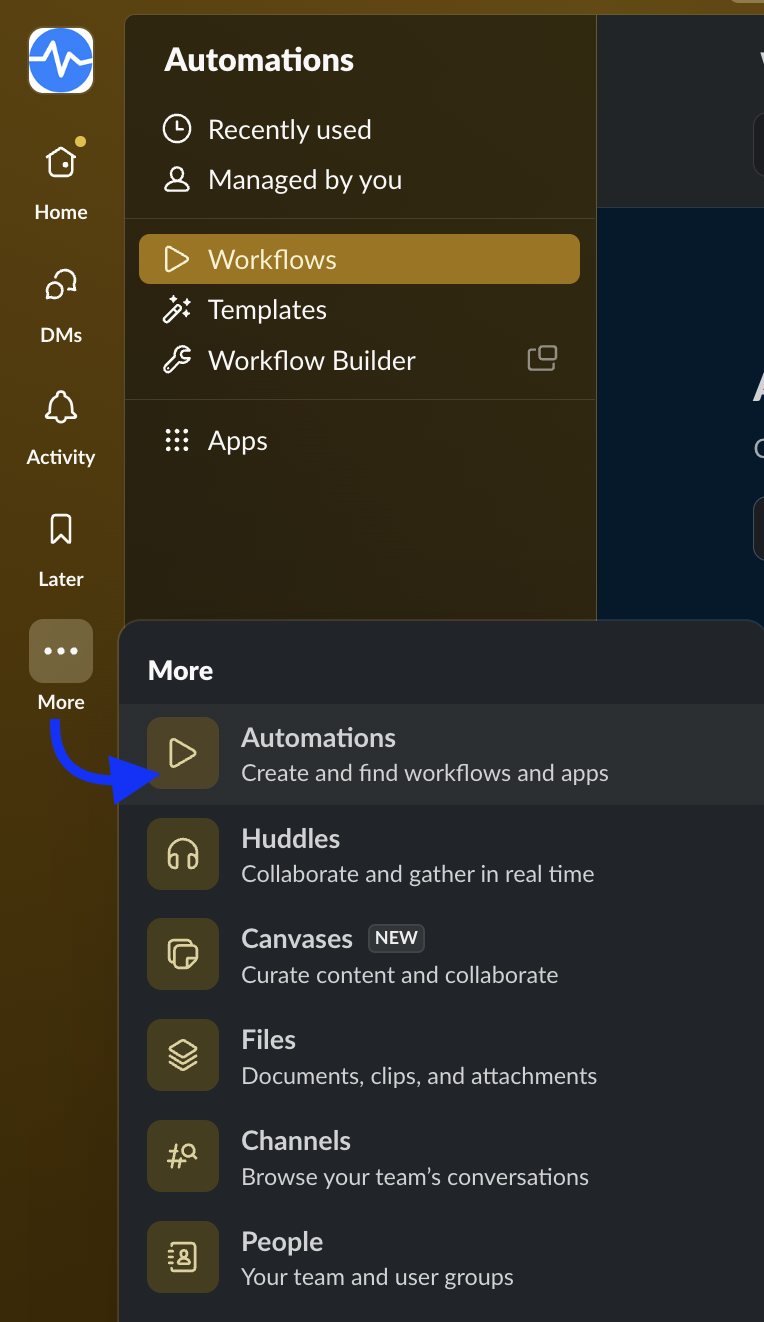

To create a new workflow in Slack Workflow Builder, log in to your Slack workspace on your desktop and hover over More, then select Automations.

Step 2:

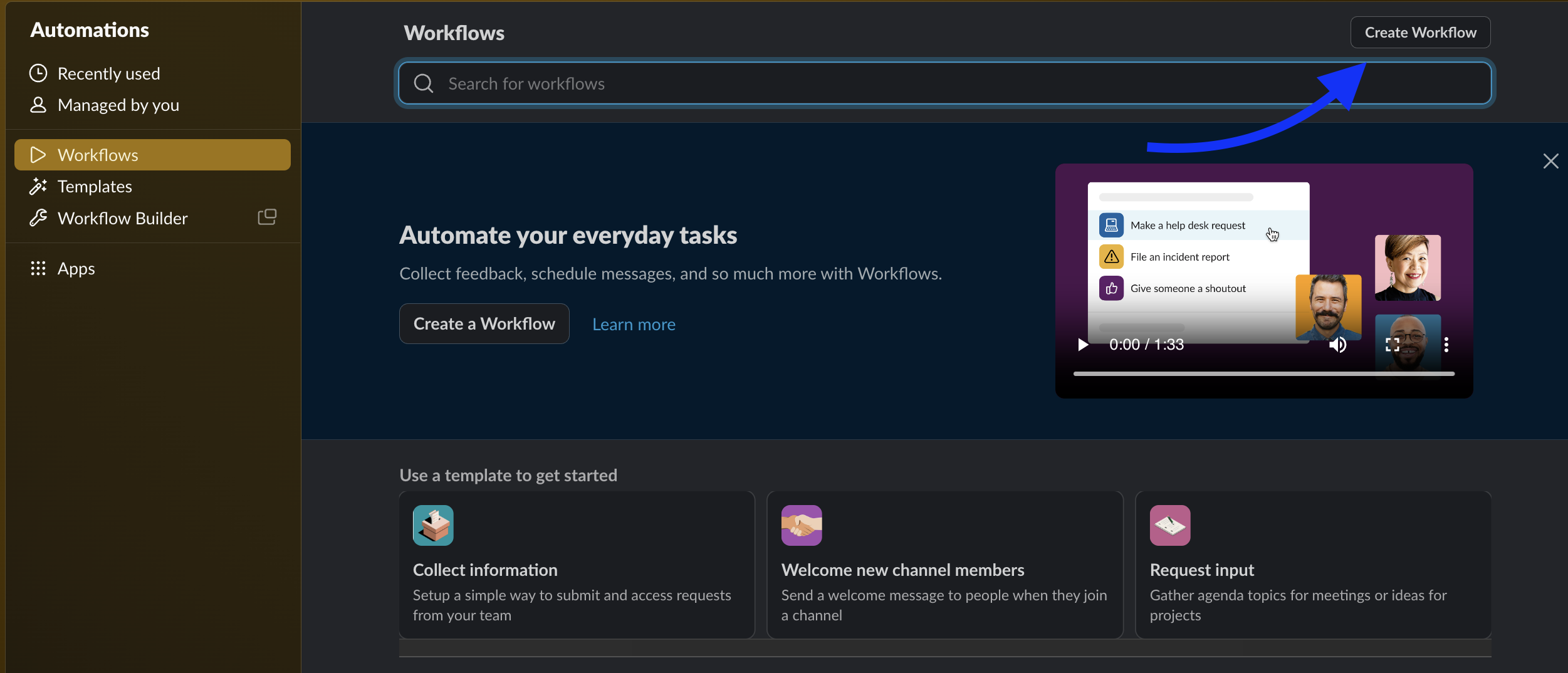

Click Workflows on the left-side menu and click on Create Workflow at the top right.

Step 3:

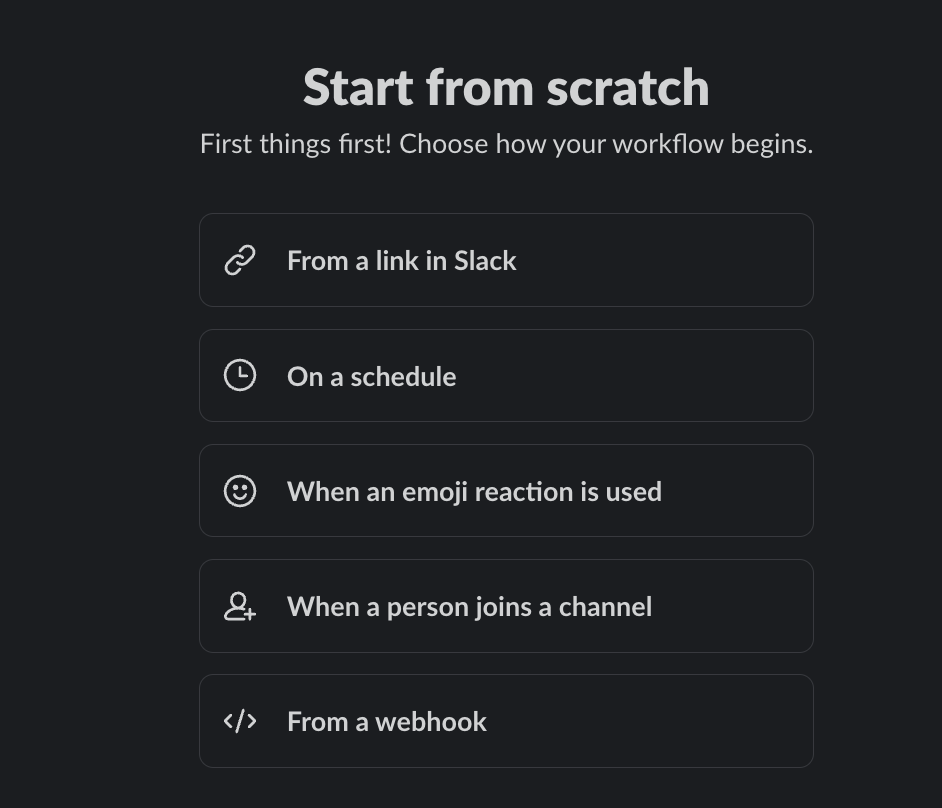

Select From a webhook.

Step 4:

When integrating a webhook with Slack Workflow Builder, webhook variables can be defined to pass dynamic data between the two systems. Once the webhook variable is defined, Slack can access its value and use it to perform specific actions.

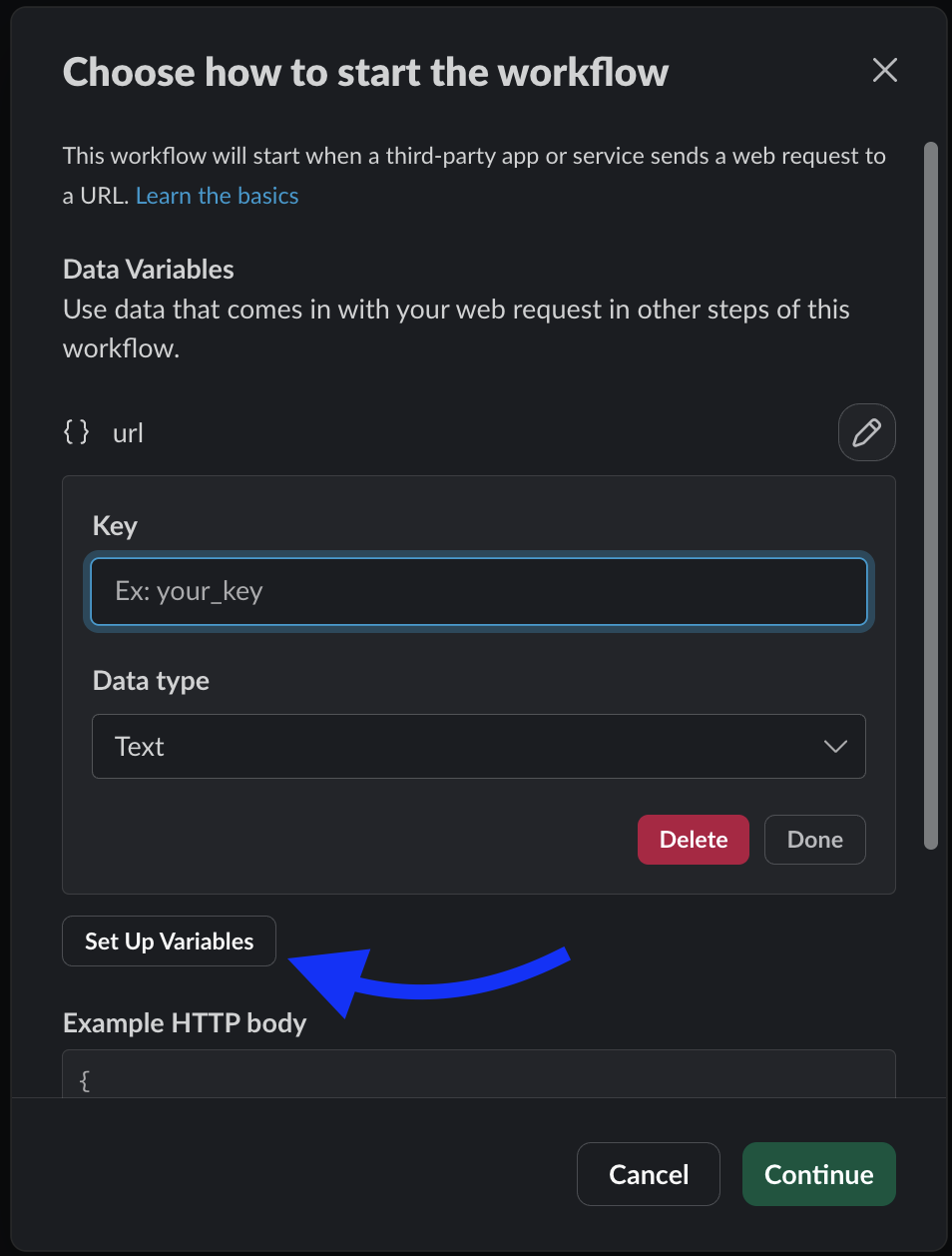

Click on Set Up Variables and enter the specific Key you want to use in your workflow. See below for a list of key options.

Visualping Webhooks variables:

Key

Data Type

Description

job_id

Text

Unique job ID

workspace_id

Text

Job's workspace ID

workspace_name

Text

Job's workspace name

url

Text

Job's monitored URL

description

Text

Job Title

datetime

Text

The time notification was sent in UTC

original

Text

PNG file of the original screenshot

current

Text

PNG file of the current screenshot

preview

Text

PNG file of the visual changes

html_previous

Text

HTML file of the previous capture

html_current

Text

HTML file of the current capture

change

Text

Change percentage

view_changes

Text

Link to the job in the dashboard

job_settings

Text

Link to the job settings in the dashboard

visual_changes

Text

Shareable visual changes view link

text_changes

Text

Shareable text changes view link

added_text

Text

A comma-separated string of added text

removed_text

Text

A comma-separated string of removed text

labels

Text

Job labels

summarizer

Text

A summary of change by AI Summarizer

important

Text

True or False based on the importance of the change (self-prompt or AI Analyzer)

good_feedback

Text

Link to the good alert feedback

bad_feedback

Text

Link to the bad alert feedback

Step 5:

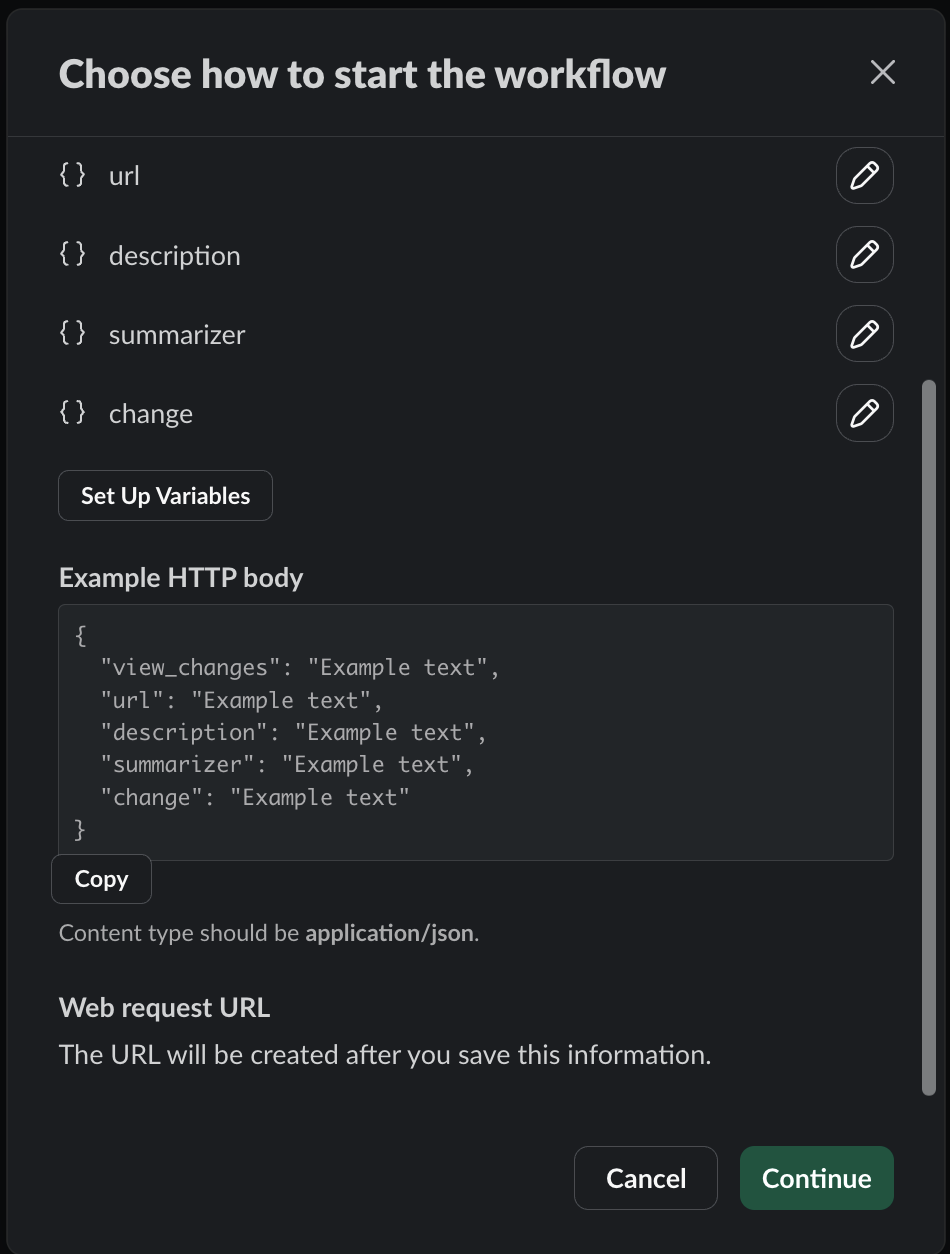

Once you have added the webhook variables, your workflow editor should display them in the appropriate fields. It should look something like this. Click Continue.

Step 6:

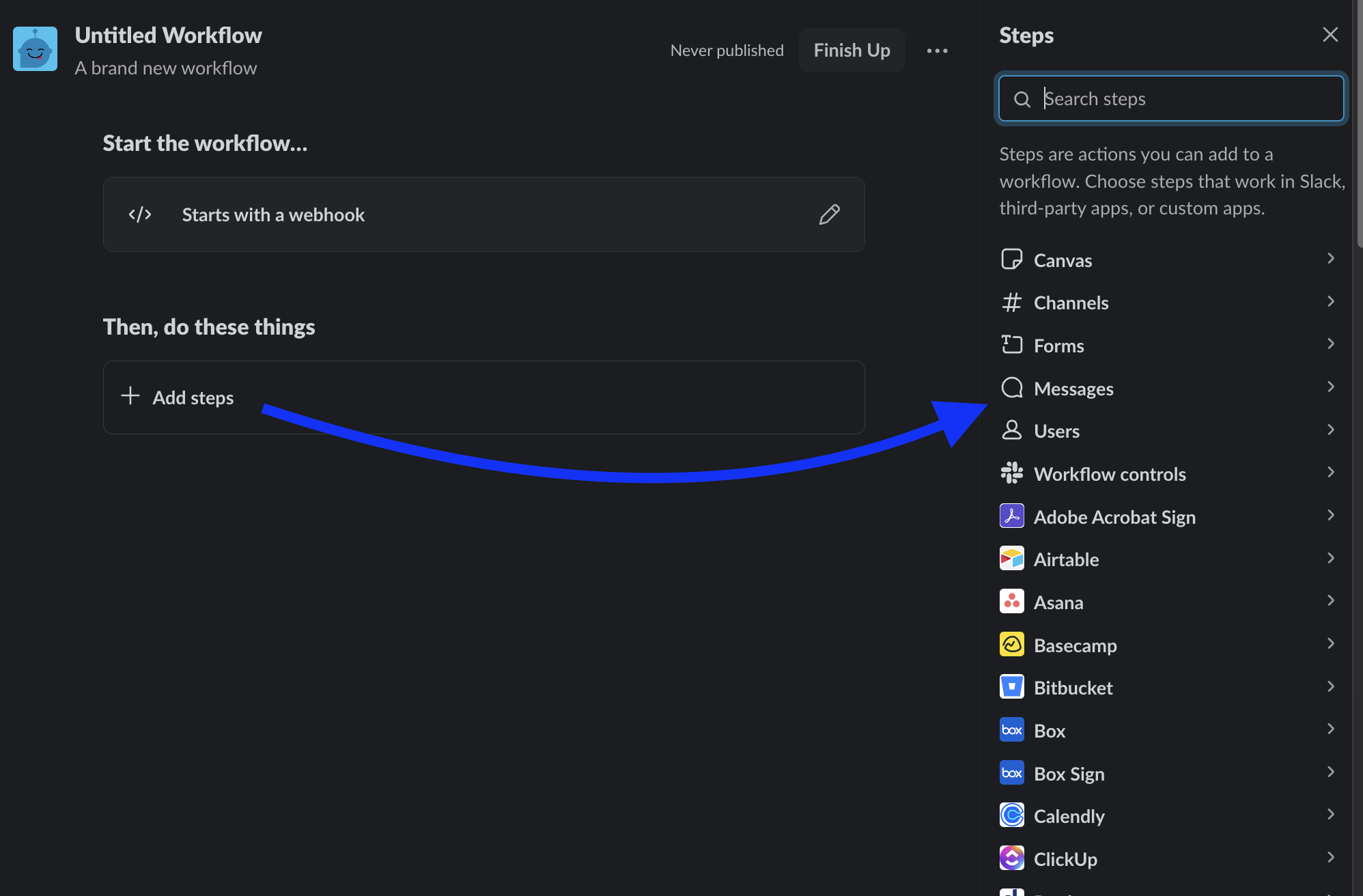

Now that we have our webhook variables configured, we can tell Slack what to do with them. To add a step to the workflow, click Add steps and select the step you want in the right-side panel. You can choose from a variety of systems and actions to automate. For this tutorial, we'll send a message to a Slack channel by selecting Messages > Send a message to a channel.

Step 7:

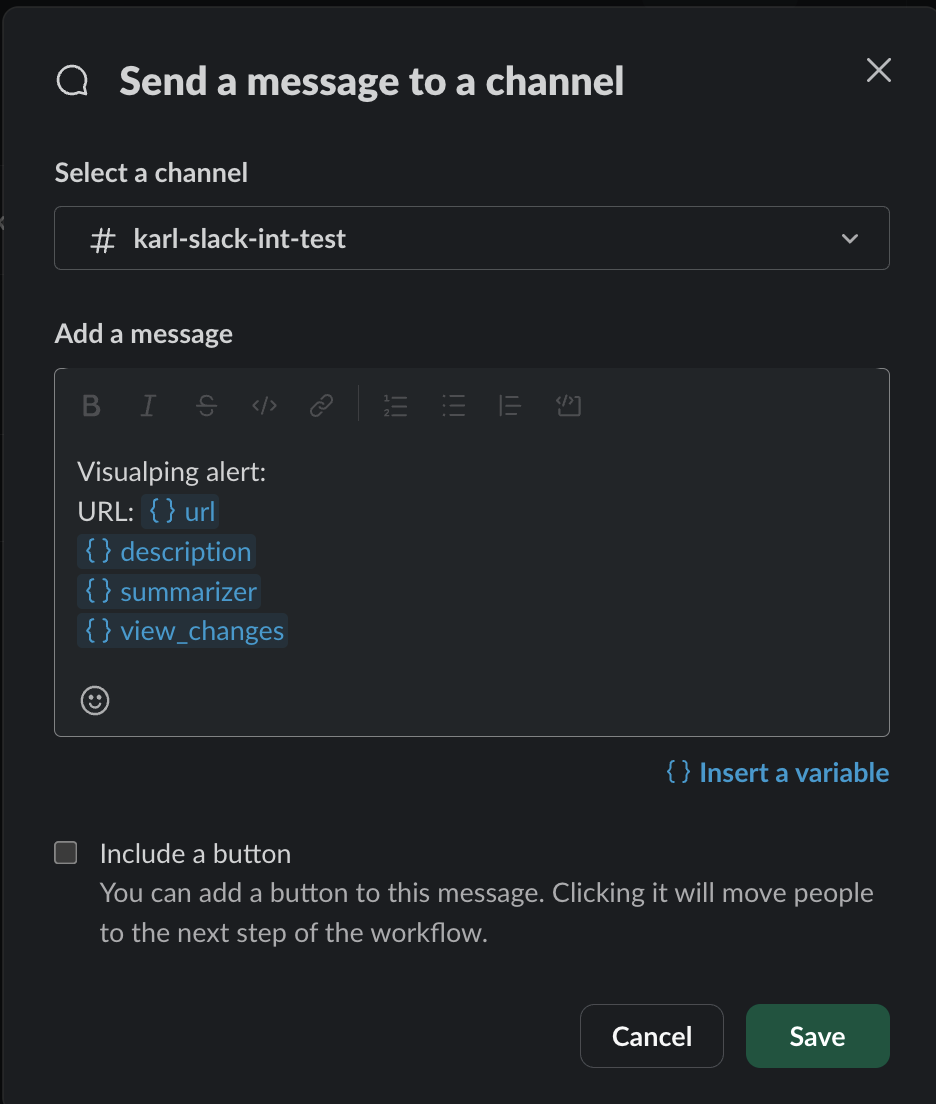

Next, select the channel, which can be either a public/private channel. In addition, you have the option to customize the message by including the webhook variables that were previously configured. To do this, simply click on the "insert a variable" button. Once finished, click Save.

Step 8:

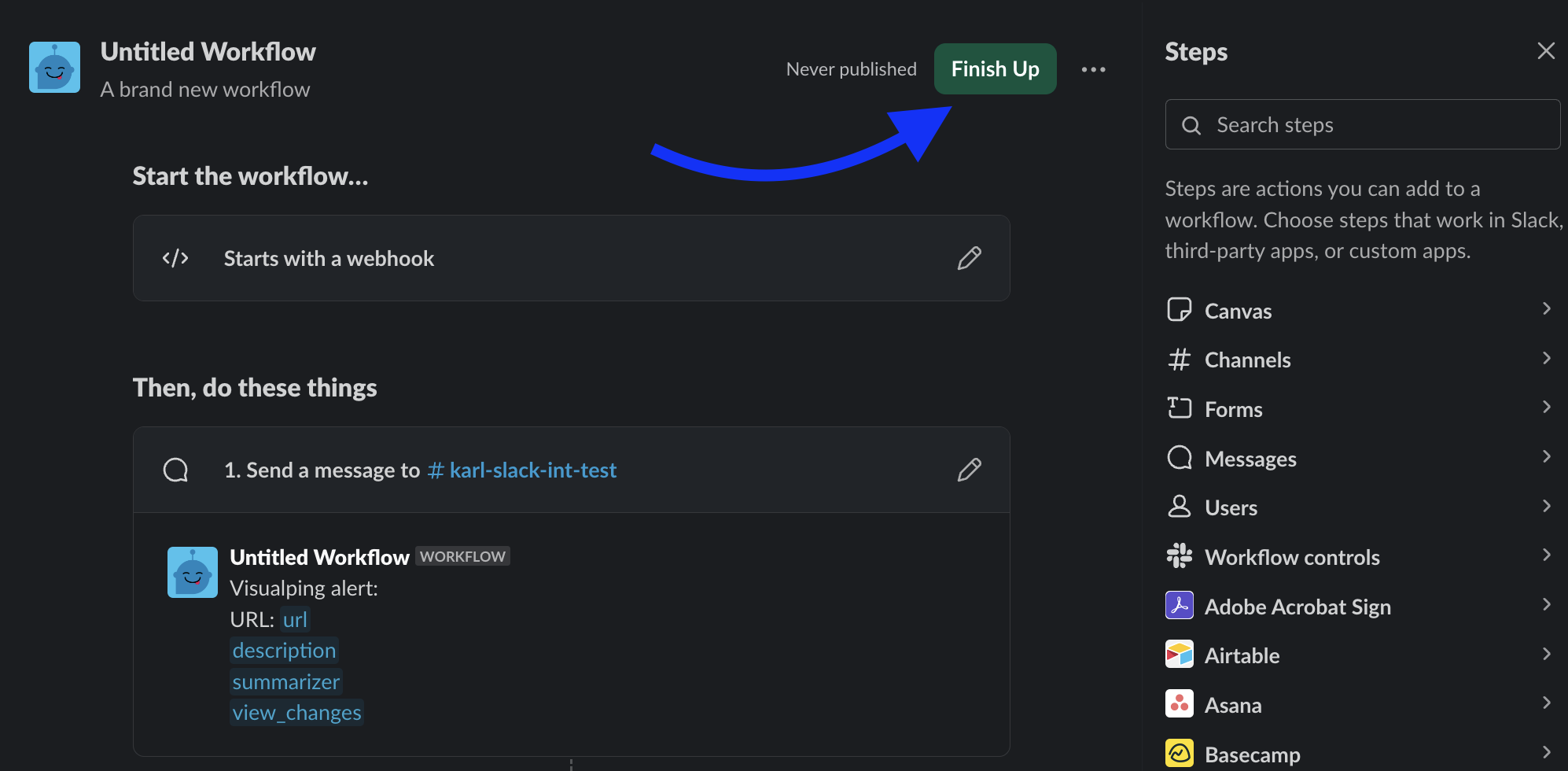

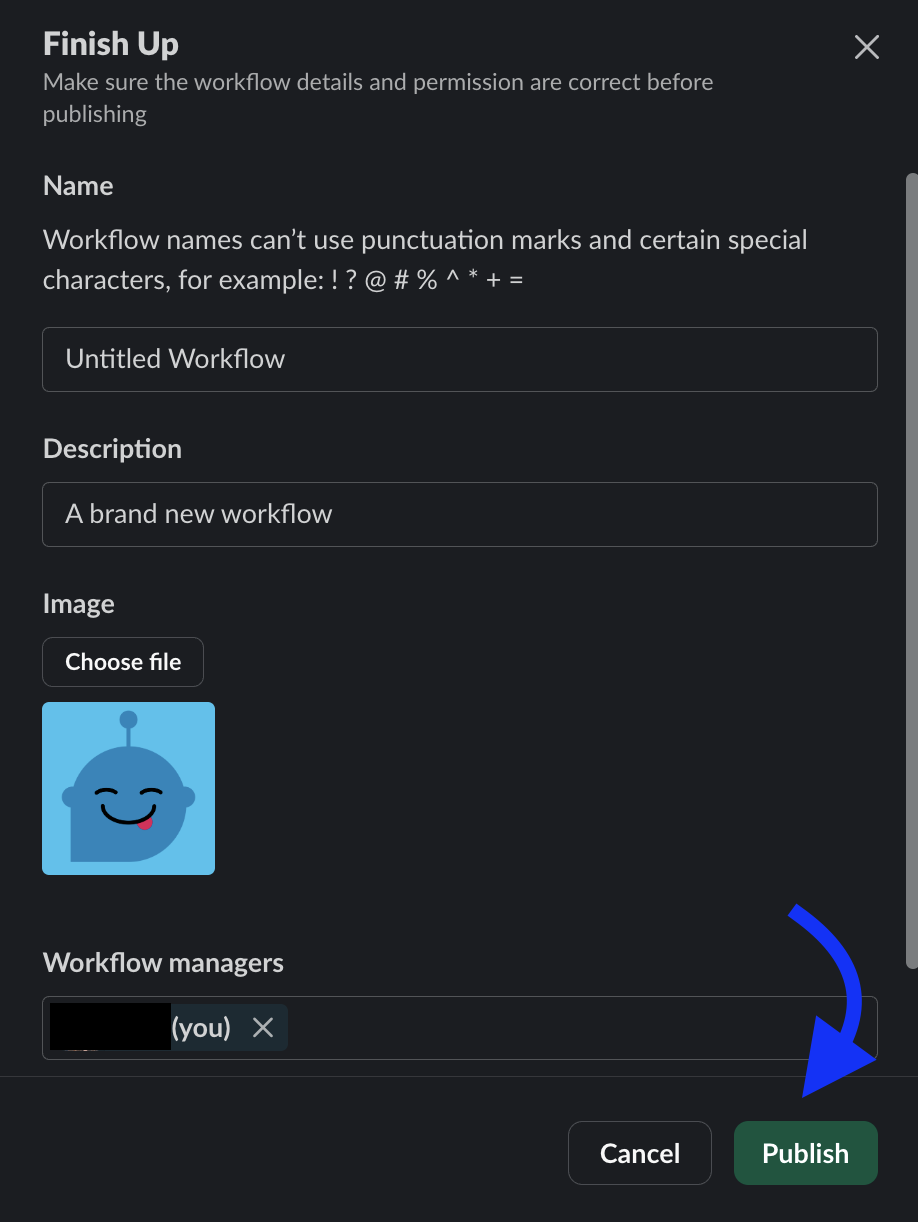

Click the Finish up button to edit the workflow details and click Publish.

Step 9:

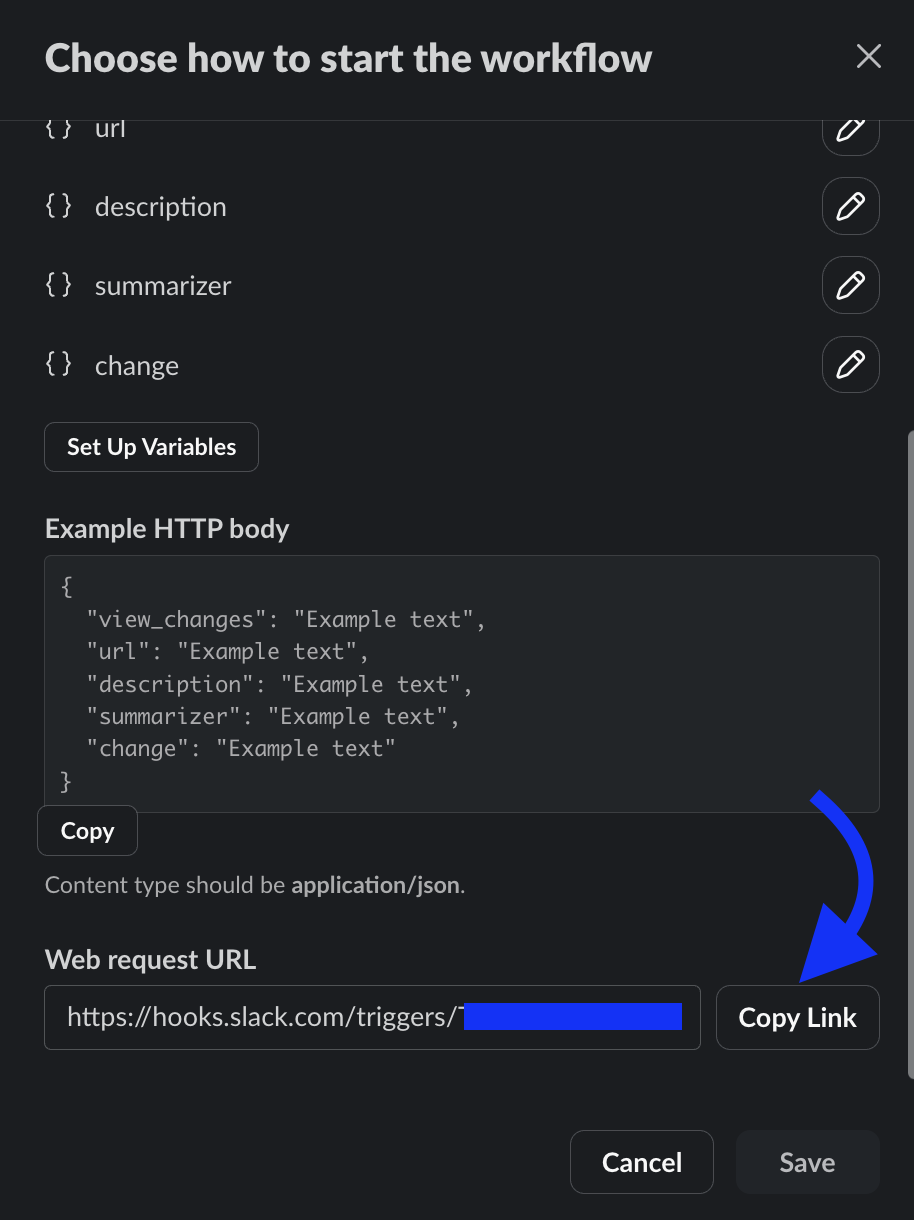

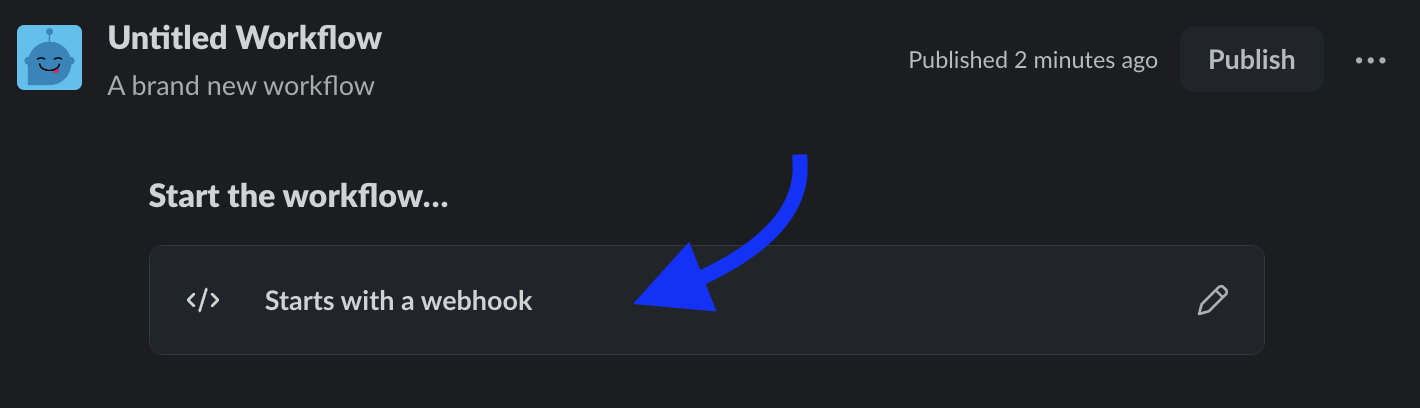

To find the unique webhook URL for this workflow, click on Starts with a webhook section and click Copy Link for the Web request URL. This is the final step in the Slack Workflow Builder.

Step 10:

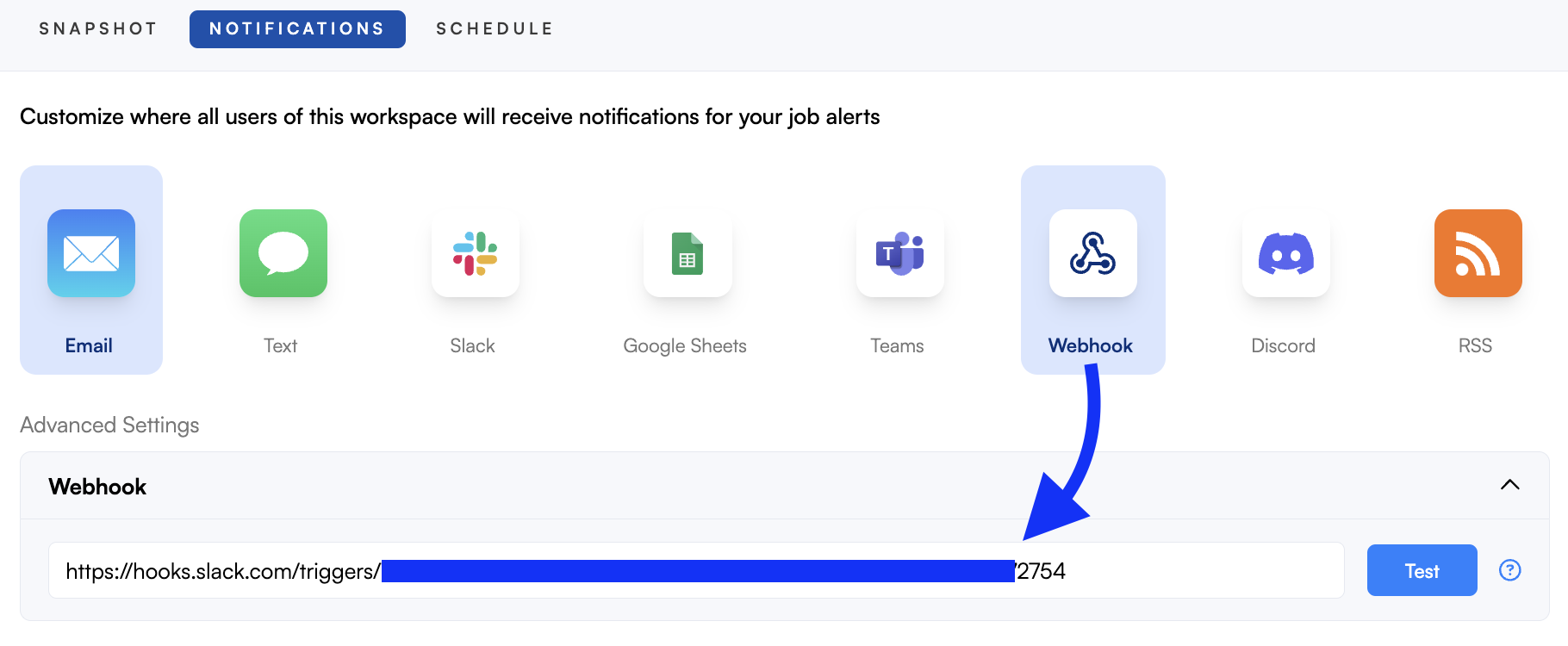

Head to your Visualping dashboard. Open the job settings for the job you want to edit, then click the Notifications tab. Select the Webhook option and paste the Web request URL from Slack, and click Save. You can test the integration by clicking on Test, and you'll receive a test webhook payload. This step completes the Slack Workflow Builder with Visualping.
